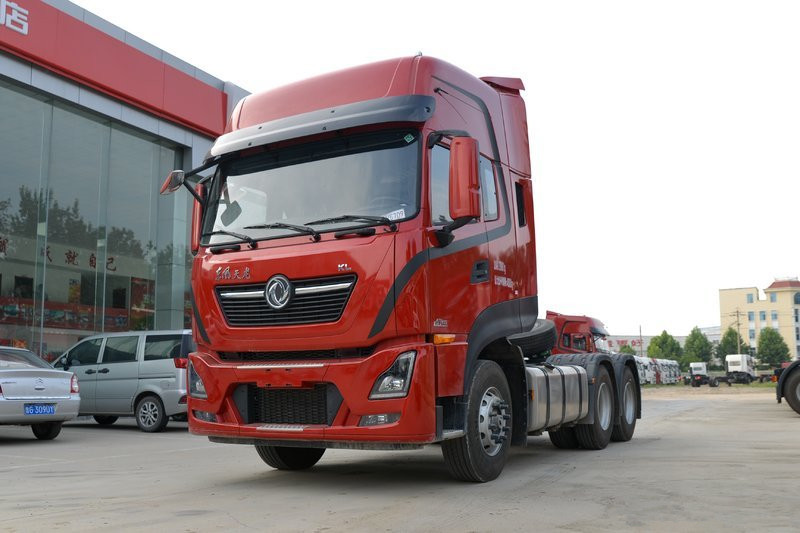

Dongfeng KL Linghui Version 560HP 6X4 Euro 6 Tractor Truck(Speed Ratio 3.91)(DFH4250D8)

Collection Enquire

Views:0

Technical Parameter

Model
DFH4250D8
Curb Weight(kg)
10.2t
Engine Displacement(L)
13.48L
Engine Max Output Power(kw)
418kW
Transmission Model
Dongfeng DT1425 0D
Wheelbase(mm)
3350+1350mm
Tire
12R22.5 18PR
Max Speed(km/h）
89km/h
Cylinder Number
6
Emission Level
Euro 6
Driving Type
6X4
Engine Max Torque(N.m)
2650N·m
Overall Dimensions(mm)
6.9m*2.55m*3.96m
Gross Weight(kg)
25t
Fuel Type
Diesel
Gear Shift
14 Gear
Fuel Tank Capacity(L)
800L
Rear Axle
485 Rear Axle
Engine Model
Dongfeng Cummins Z14NS6B560
Wheel Track Front/Rear(mm)
Front: 2010mm Rear: 1860/1860mm
Max. Drawing Capacity(kg)
38.67t
Engine Brand
Dongfeg Cummins
Horsepower(Ps)
560H
Max. Torque/Rotation Speed(N.m/rpm)
900-1400rpm
Passenger Capacity
3
Rear Axle Ratio
3.91
Number of Leaf Spring
3/4
Number of Wheels/Tires
10
