Ollin S3 150HP 4×2 4.1m Euro 6 Dumper(ZB3041JDD6L) - Dumper -www.chinatrucks.org

Location:Chinatrucks > truck > dumper > Ollin S3 150HP 4×2 4.1m Euro 6 Dumper(ZB3041JDD6L)

Product Presentation

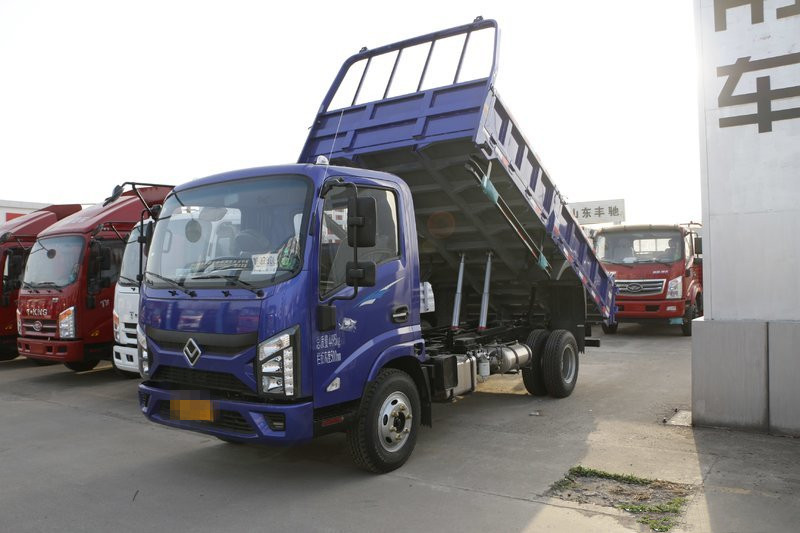

Ollin S3 150HP 4×2 4.1m Euro 6 Dumper(ZB3041JDD6L)

Collection Enquire

Views:0

Technical Parameter

Model
ZB3041JDD6L
Curb Weight(kg)
2,720kg
Engine Displacement(L)
2.5L
Engine Max Output Power(kw)
110kW
Transmission Model
Changtai SC8S45TL
Wheelbase(mm)
3360mm
Tire
7.00R16LT 8PR
Cylinder Number
4
Emission Level
Euro 6
Driving Type
4X2
Engine Max Torque(N.m)
400N·m
Overall Dimensions(mm)
5,993mm*2,180mm*2,340mm
Payload Weight(kg)
1,580kg
Gross Weight(kg)
4,495kg
Fuel Type
Diesel
Gear Shift
8 Speed
Engine Model
Yunnei Power D25TCIF1
Wheel Track Front/Rear(mm)
Front: 1650mm Rear: 1600mm
Bucket Dimension(mm)
4,100mm*2,100mm*500mm
Engine Brand
Yunnei Power
Horsepower(Ps)
150HP
Max. Torque/Rotation Speed(N.m/rpm)
1200-2600rpm
Number of Wheels/Tires
6
