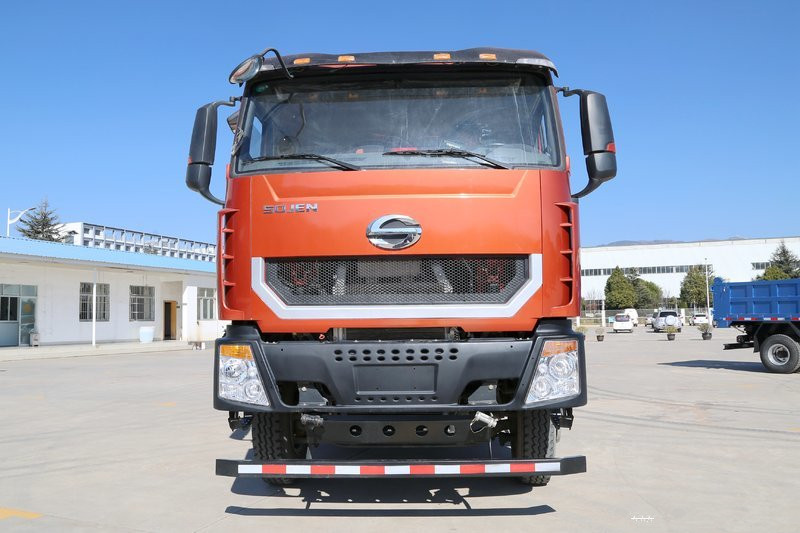

SOJEN D960 336HP 5.6m Euro 5-compliant LNG Dumper(LFJ3255G11)

Location:Chinatrucks > truck > dumper > SOJEN D960 336HP 5.6m Euro 5-compliant LNG Dumper(LFJ3255G11)

Product Presentation

Collection Enquire

Technical Parameter

Model
LFJ3255G11
Curb Weight(kg)
11,925kg
Engine Displacement(L)
9.726L
Engine Max Output Power(kw)
247kW
Transmission Model
FAST 9JS150A
Wheelbase(mm)
3800+1350mm
Tire
11.00R20,12.00R20 16PR
Cylinder Number
6
Emission Level
Euro 5
Driving Type
6X4
Engine Max Torque(N.m)
1350N·m
Overall Dimensions(mm)
8,550mm*2,490mm*3,585mm
Payload Weight(kg)
12,945kg
Gross Weight(kg)
25,000kg
Fuel Type
Natural gas
Gear Shift
9 Gearshift
Cab
One and a Half Cab
Fuel Tank Capacity(L)
600L
Rear Axle
16T/16T with ABS
Engine Model
Weichai WP10NG336E51
Wheel Track Front/Rear(mm)
Front Wheel Track: 2050mm Rear Wheel Track: 1860/1860mm
Bucket Dimension(mm)
5,600mm*2,300mm*1,100mm
Engine Brand
Weichai
Horsepower(Ps)
336HP
Max. Torque/Rotation Speed(N.m/rpm)
1400-1600rpm
Rear Axle Ratio
5.73
Number of Leaf Spring
1112
Number of Wheels/Tires
10
