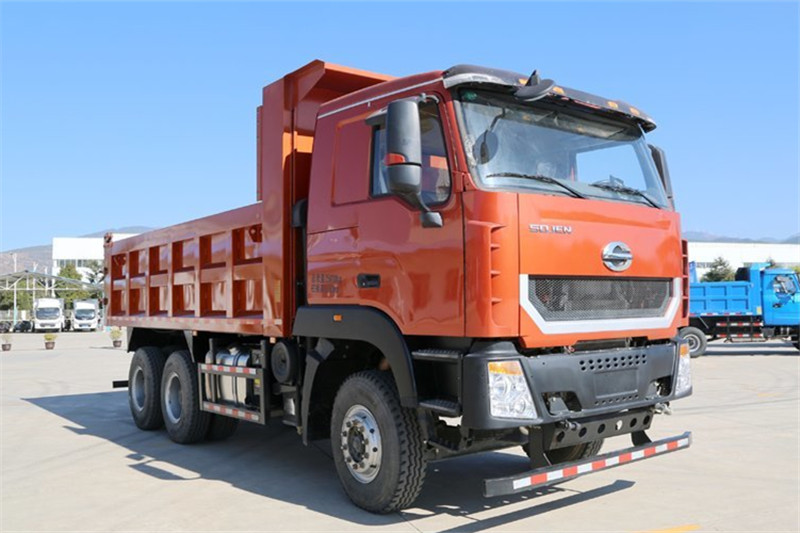

SOJEN D960 350HP Euro-compliant 5.8m Dumper(LFJ3251SCG1)

Location:Chinatrucks > truck > dumper > SOJEN D960 350HP Euro-compliant 5.8m Dumper(LFJ3251SCG1)

Product Presentation

Collection Enquire

Technical Parameter

Model
LFJ3251SCG1
Curb Weight(kg)
12,370
Engine Displacement(L)
9.726L
Engine Max Output Power(kw)
257kW
Transmission Model
FAST 12JS160
Wheelbase(mm)
3800+1350mm
Tire
11.00R20 18PR
Cylinder Number
6
Emission Level
Euro 5
Driving Type
6X4
Engine Max Torque(N.m)
1600N·m
Overall Dimensions(mm)
8,600mm*2,495mm*3,585mm
Payload Weight(kg)
12,500kg
Gross Weight(kg)
25,000kg
Fuel Type
Diesel
Gear Shift
12 Gearshift
Cab
One and a Half Cab
Fuel Tank Capacity(L)
400L
Rear Axle
16T/16T with ABS
Engine Model
Weichai WP10.350E53
Wheel Track Front/Rear(mm)
Front Wheel Track: 2050mm; Rear Wheel Track: 1860/1860mm
Bucket Dimension(mm)
5,800mm*2,300*1,100mm
Engine Brand
Weichai
Horsepower(Ps)
350HP
Max. Torque/Rotation Speed(N.m/rpm)
1200-1600rpm
Rear Axle Ratio
5.73
Number of Leaf Spring
1112
Number of Wheels/Tires
10
