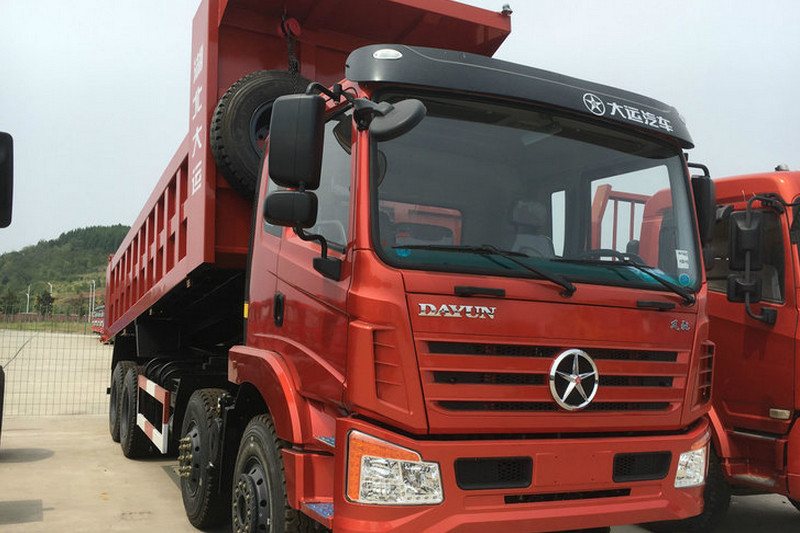

Dayun Fengchi 280HP 8X4 6.2m Euro-compliant Dumper(DYQ3310D5FC)

Location:Chinatrucks > truck > dumper > Dayun Fengchi 280HP 8X4 6.2m Euro-compliant Dumper(DYQ3310D5FC)

Product Presentation

Collection Enquire

Technical Parameter

Model
DYQ3310D5FC
Curb Weight(kg)
14,770kg
Engine Displacement(L)
8.424L
Engine Max Output Power(kw)
206kW
Transmission Model
FAST 10JS120B
Wheelbase(mm)
1800+2600+1350mm
Tire
11.00R20，11R22.5，12R22.5
Cylinder Number
6
Emission Level
Euro 5
Driving Type
8X4
Engine Max Torque(N.m)
1100N·m
Overall Dimensions(mm)
9,160*2,490mm*3,150mm
Payload Weight(kg)
16,100kg
Gross Weight(kg)
31,000kg
Fuel Type
Diesel
Gear Shift
10 Gearshift
Fuel Tank Capacity(L)
260L
Rear Axle
435
Engine Model
Yuchai YC6L280-50
Wheel Track Front/Rear(mm)
Front Wheel Track: 1970/1970mm; Rear Wheel Track: 1860/1860mm
Bucket Dimension(mm)
6,200mm*2,290mm*1,350mm
Engine Brand
Yuchai
Horsepower(Ps)
280HP
Max. Torque/Rotation Speed(N.m/rpm)
1200-1700rpm
Rear Axle Ratio
5.143
Number of Leaf Spring
9/9/10
Number of Wheels/Tires
12
