LANDKING R Mini Trucks: Compact, High-Capacity, Ideal for City Travel

As the demand for rural logistics and supermarket deliveries continues to grow, mini trucks have become essential tools for many small business owners. However, as the market evolves, consumers are expecting more from mini trucks. They want vehicles that are not only reliable, durable, and safe but also have a strong loading capacity. To meet this demand, the LANDKING R Series mini truck was created.

LANDKING is a high-end brand by WEICHAI New Energy Commercial Vehicles. Built with WEICHAI Group’s integrated R&D system and global supply chain, these trucks are setting new standards in performance and quality and setting a new benchmark for premium development in the light truck market. The LANDKING R Series, a new high-end mini truck platform, combines resources from the WEICHAI Powertrain Research Center and the Tokyo Innovation Center in Japan. Based on the Suzuki Carry's 11th generation, the LANDKING R Series features a simple design, spacious interior, high load capacity, and great flexibility, making it ideal for modern logistics and diverse transportation needs.

High Load Capacity, Strong Power

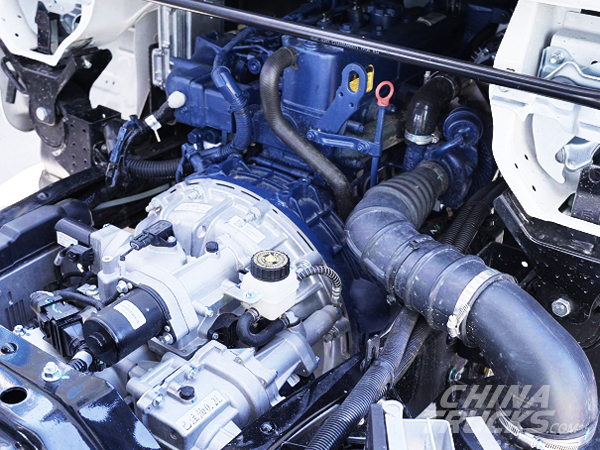

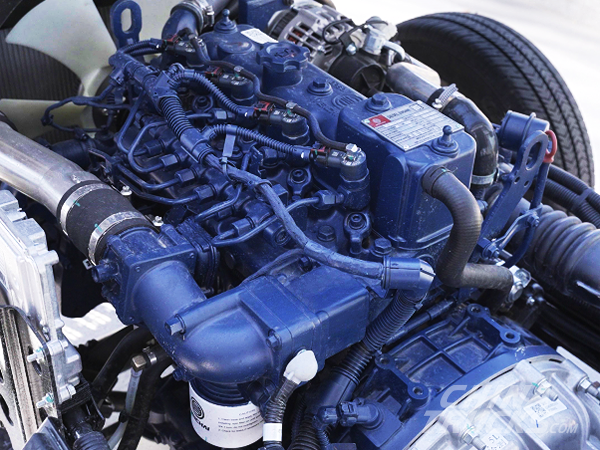

The R Series comes in both gasoline and diesel versions. The diesel model is equipped with the WEICHAIWP2.3Q 4-cylinder engine, with a displacement of 2.289 liters. It offers a maximum power output of 103 kW (140 horsepower) and delivers a peak torque of 320 Nm between 1600-2400 RPM. Compared to other mini trucks in the same class, it provides superior performance under heavy load conditions. Additionally, the engine adopts an efficient SCR technology route, which makes it simpler and more reliable in design.

The LANDKING R series is equipped with a 5-speed 5TR34 manual transmission. This transmission uses high-efficiency gears with a "fine high tooth" design, which ensures smoother shifting and improves the transmission efficiency by 5% compared to industry-leading standards.

With WEICHAI’s powertrain technology, the precise combination of the high-performance engine and efficient transmission in the LANDKING R series provides powerful performance and excellent stability under heavy load conditions, perfectly reflecting its design philosophy of "high load capacity, strong power."

Compact Size, High Load Capacity

In terms of the chassis, the vehicle is equipped with a 1.5T front axle and a 2.5T-4T rear axle, with a gear ratio of 4.333. The suspension system features a 3-leaf spring setup in the front and a 5+2 leaf spring setup in the rear, while the frame is built with a large beam of 160mm in height. This strong build ensures excellent load-bearing capacity, easily handling the daily demands of full-load transportation.

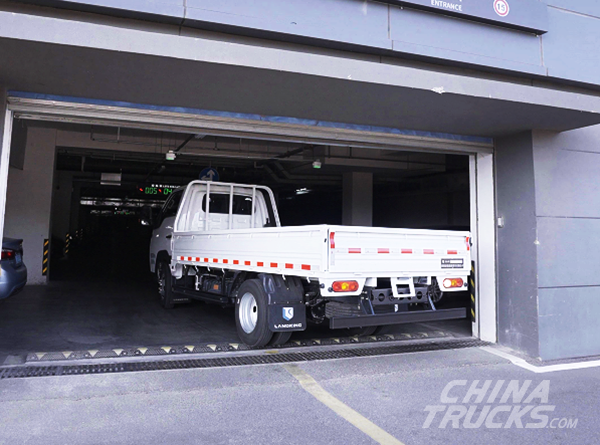

Regarding the overall dimensions, the LANDKING R series has a minimum vehicle size of 5660*1850*2130mm, with a wheelbase ranging from 2800mm to 3300mm. With a vehicle height of less than 2.2 meters, it can easily enter underground parking lots and navigate city roads with height and width restrictions. Additionally, the minimum turning diameter is less than 13.5 meters, offering greater maneuverability. This makes the vehicle highly adaptable, capable of smoothly driving through narrow city streets and rural roads.

The LANDKING R series combines compact body size with impressive load capacity, showcasing its practicality and adaptability. It provides an efficient and flexible solution for modern logistics and transportation needs.
